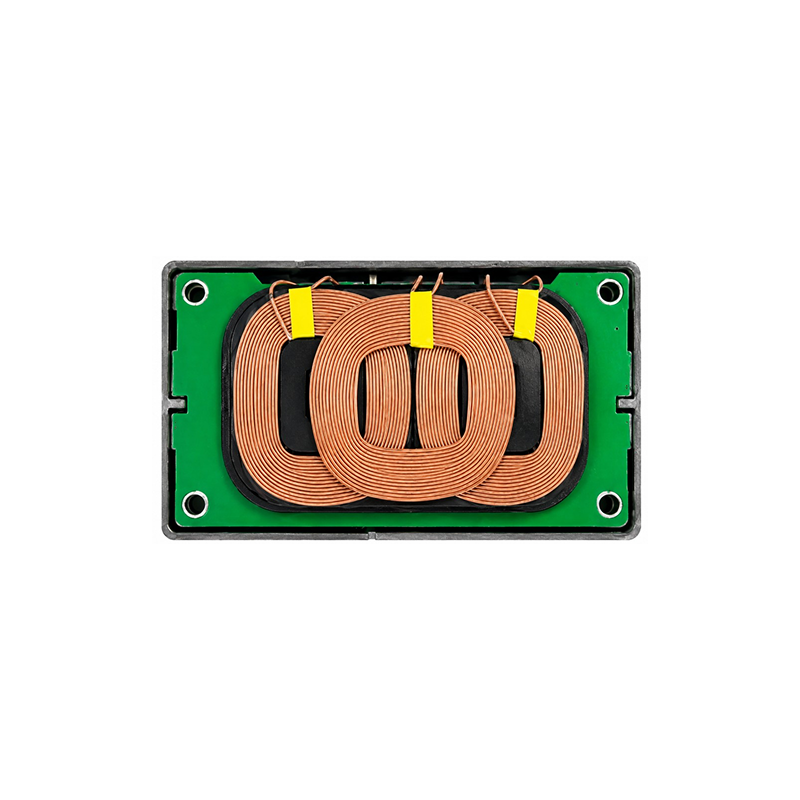

PTC-200K (WPC 1.2.4 / EPP)

PTC-200K
(WPC 1.2.4 / EPP)

PTC-200K (WPC 1.2.4 / EPP)
√ Up to 15W Fast Wireless Charging
√ OEM Automotive Wireless Charging Solution by MOTREX
√ Hyundai Venue (2019~) Application
√ Kia Sportage (South America Market, 2021~) Application
√ Edison Motors Commercial Bus (2021~) Application

√ Compatible with Samsung, Apple, LG, and Other Qi-enabled Devices
√ Qi Certified (15W EPP)
√ KC Certified
√ Automotive-grade Reliability and Environmental Test Certified
√ Built-in Foreign Object Detection (FOD)
√ Built-in Over-Temperature Protection (OTP)
√ Built-in Over-Voltage Protection (OVP)
√ Built-in Over-Current Protection (OCP)
Back to list

Specifications

Input Voltage (Normal) 9V ~ 16V
Input Current (Max) 2.0A
Input Source Vehicle Battery (ACC/B+)
Output Power Max. 15W
Operating Frequency 127.7kHz (Fixed)
Charging Area X : 60mm
Y : 20mm
Z : 8mm
Efficiency More than 70% (Max)
Operating Temp. Range -20°C ~ +70°C
Storage Temp. Range -40°C ~ +90°C
Size / Weight Refer to the drawing

Coil Specification

Inductance Usually 6~12µH
D.C. Resistance Usually 80~250mΩ
Dimension Refer to the drawing

Application Cases

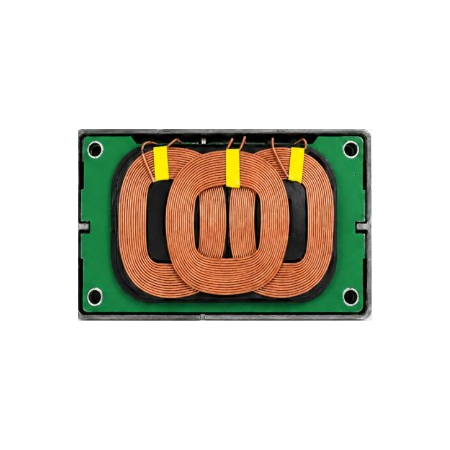

200k 좌.png
CASE 1 Mortrex Hyundai and Kia Motors
  • √ Supports up to 15W Fast Wireless Charging
  • √ MOTREX OEM In-Vehicle Wireless Charger (3-Coil Wireless Charging Module Applied)
  • √ Applied to Hyundai Venue (2019~)
  • √ Applied to Kia Sportage for South American Market (2021~)

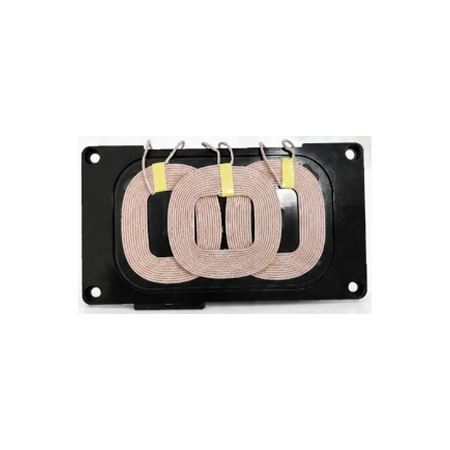

200k 우.png
CASE 2 Edison Motors Commercial Bus
  • √ Supports up to 15W Fast Wireless Charging
  • √ OEM In-Vehicle Wireless Charging System Featuring a 3-Coil Wireless Charging Module
  • √ Adopted in Edison Motors Commercial Buses (Since 2021)

Details

√ OEM Automotive Wireless Charging Solution by MOTREX

√ Hyundai Venue (2019~) Application

√ Kia Sportage (South America Market, 2021~) Application

√ Edison Motors Commercial Bus (2021~) Application


√ Compatible with Samsung, Apple, LG, and Other Qi-enabled Devices

√ Qi Certified (15W EPP)

√ KC Certified

√ Automotive-grade Reliability and Environmental Test Certified

√ Built-in Foreign Object Detection (FOD)

√ Built-in Over-Temperature Protection (OTP)

√ Built-in Over-Voltage Protection (OVP)

√ Built-in Over-Current Protection (OCP)
