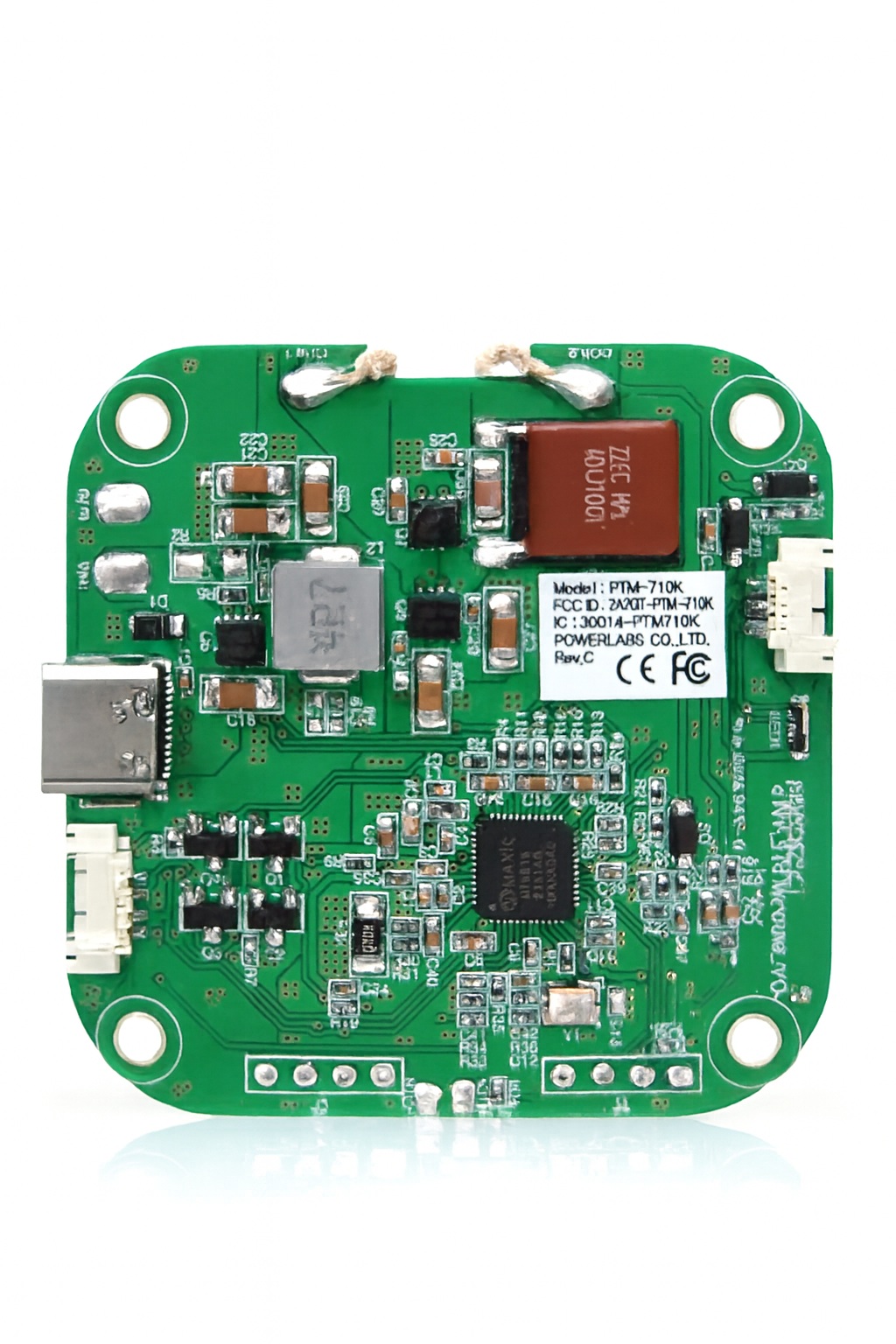

PTM-710K (WPC 1.2.4 / EPP)

PTM-710K
(WPC 1.2.4 / EPP)

PTM-710K (WPC 1.2.4 / EPP)
√ Up to 15W Fast Wireless Charging
√ Designed for Automotive and Commercial Applications
√ Proven Application in Casino Gaming Systems
√ Enhances User Convenience and Encourages Continuous Device Usage
√ Proprietary Auto Eject Technology with Patented Design
√ Automatically Releases the Smartphone When Vehicle Power is Shut Down
√ Secure One-Hand Operation with Intelligent Auto-Clamping Mechanism
√ AXL Branded Wireless Car Charger Mount
Back to list

Specifications

Input Voltage (Normal) 5.0V / 9.0V / 12V
Input Current (Max) 1.67A @ 12V
Input Source 1) DC Input Support
2) USB-QC Support
3) USB-PD Support
Output Power 5W @5V / 9W @9V / 10W @12V (WPC)
Operating Frequency 127.7 ± 1kHz
Charging Area X : -8mm ~ +8mm
Y : -8mm ~ +8mm
Z : +5mm ~ +10mm
*Condition : IDT P9221 EVM Receive
Efficiency Over 65% @ 10W
Operating Temp. Range -30°C ~ +60°C
Storage Temp. Range -40°C ~ +85°C
Size / Weight PCB Size : 50mm x 50mm x 1mm
Coil Ass’y Size :50Φ, 3T
Weight : 24g

Coil Specification

Inductance 6.3uH ± 10% (f=100 kHz 1.0Vms)
D.C. Resistance Max 0.08 Ω
Dimension Refer to the drawing

Application Cases

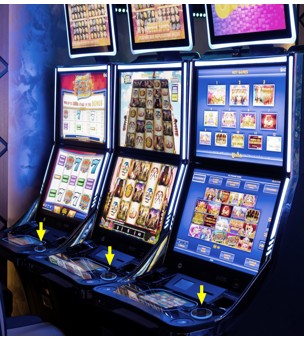

CASE 1 Casino Gaming
  • √ Increase Casino Game Stay Time and Immersion
  • √ Promote sustained use within the gaming environment
  • √ 15-Watt Wireless Charging Support, MagSafe Features
CASE 2 Automotive Wireless Charging
  • √ Vehicle Wireless Charging Cradle
  • √ Wireless Charging Support Up to 15W
  • √ 'Auto Eject' holds original patent.
  • √ Equipped with an 'Auto Eject' feature that automatically activates the grip when power is cut after the vehicle has been turned off.
  • √ Powercast AXL Vehicle Wireless Charging Station

Details

√ Up to 15W Fast Wireless Charging

√ Designed for Automotive and Commercial Applications

√ Proven Application in Casino Gaming Systems

√ Enhances User Convenience and Encourages Continuous Device Usage

√ Proprietary Auto Eject Technology with Patented Design

√ Automatically Releases the Smartphone When Vehicle Power is Shut Down

√ Secure One-Hand Operation with Intelligent Auto-Clamping Mechanism

√ Reliable and Convenient Wireless Charging Mount Solution by Powercast AXL
