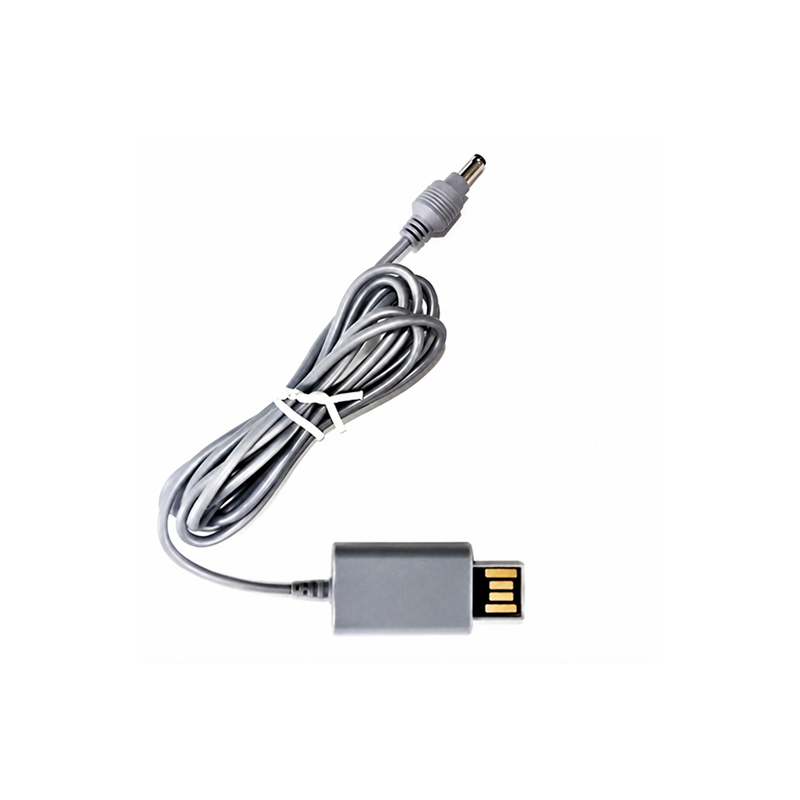

PTM-511K (WPC 1.2.4 / BPP)

PTM-530K
(WPC 1.2.4 / BPP)

PTM-511K (WPC 1.2.4 / BPP)
√ Supports up to 5W Wireless Charging
√ Designed for Beauty and Aesthetic Devices
√ Proven Application with MEDICOSON and PharmaResearch Products
√ USB-Type Wireless Charging Module Solution
√ Custom Transmitter and Receiver Development Available
√ Connector-less Design for Enhanced Reliability and Ease of Assembly
√ Miniaturized Charging Cradle Design through PCB and Coil Separation
√ Flexible Mechanical Design for Various Beauty Device Applications
Back to list

Specifications

Input Voltage (Normal) 5.0V
Input Current (Max) 2.0A
Input Source
Output Power 5W (WPC)
Operating Frequency 112kHz ~ 121kHz
Charging Area X : -8mm ~ +8mm
Y : -8mm ~ +8mm
Z : 7mm
*Condition : With TI Rx Chip applied Board
Efficiency More than 65% (Max)
Operating Temp. Range -30°C ~ +45°C
Storage Temp. Range -40°C ~ +85°C
Size / Weight Cable Length : 1.36m
USB Size : 47mm × 20mm × 6.5mm
Coil Ass’y Size : 47Φ, 2T
Weight : 30g

Coil Specification

Inductance 8.2uH ± 10% (f=100 kHz 1.0Vms)
D.C. Resistance Max 0.08 Ω
Dimension Refer to the drawing

Application Cases

CASE 1 Wireless Charging Module for Beauty Equipment
  • √ MEDICOSON / Pharma Research
  • √ Wireless Charging Module for Beauty Devices
  • √ Transmitter/Receiver Solution Development
  • √ Connector-less design delivery
  • √ Separation of PCB and Coil Enables Miniaturization of Charging Cradle
CASE 2 Wireless Charging Module for Hydrogen Water Generators
  • √ DAGAGA KOREA Wireless Charging Module for Hydrogen Water Generators
  • √ Transmitter/Receiver Solution Development
  • √ Tumbler's Connector-less Design Offers

Details
